1.Imported POSCO Zinc Magnesium Aluminum Alloy Coated Plate with outstanding anti-corrosion effect. The service life is around 10-20 times of normal galvanized plate, the surface coating has fluidity, with cut protection (automatic healing).

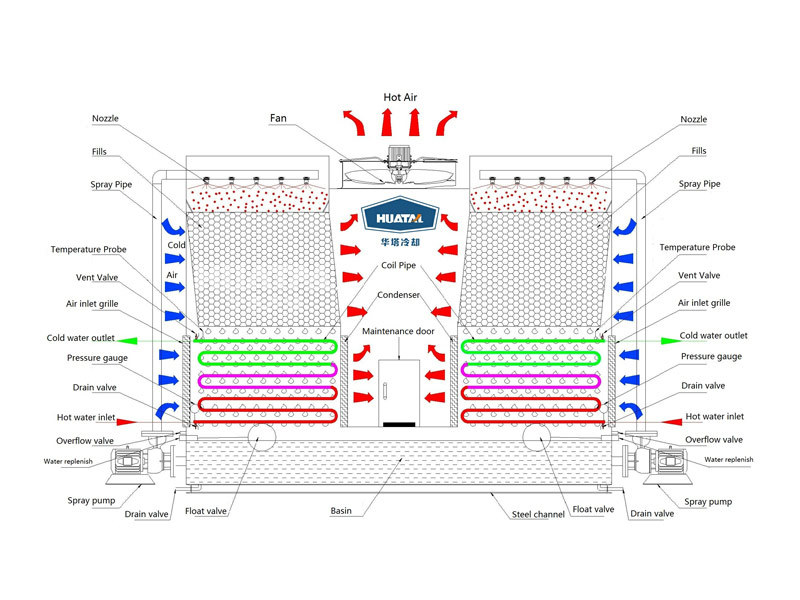

2.Stable structure, the coil pipes are in the lower box, and the whole cooling tower’s center of gravity is in the lower part. It has good stability during operation.

3.The wind can intake from both sides of the closed cooling tower at the same time , the air inlet area is large, with small wind resistance.

4.The coil pipes of both side share the fan and maintenance access, area covering is small.

5.Low drifting water ratio: more reasonable condenser arrangment, more water saving.

6.Suitable for large power, metallurgy, steel and iron industries, flat rack transportation, reduce the installation cycle.

Remarks

1.Design conditions: Inlet temperature t1=37℃, outlet temperature t2=32℃, wet bulb temperature t=28℃, dry bulb temperature O=31.5℃, barometric pressure P=9.94×104Pa;

2.The water tank should ensure that there is enough water, so that the water at the bottom of the tank can be higher than the pump inlet and filter screen when the system is running, and the general water level is > 300mm;

3.The above technical parameters are for reference only. Our company reserves the right to modify the product appearance and technical parameters due to the continuous upgrading of technology.
